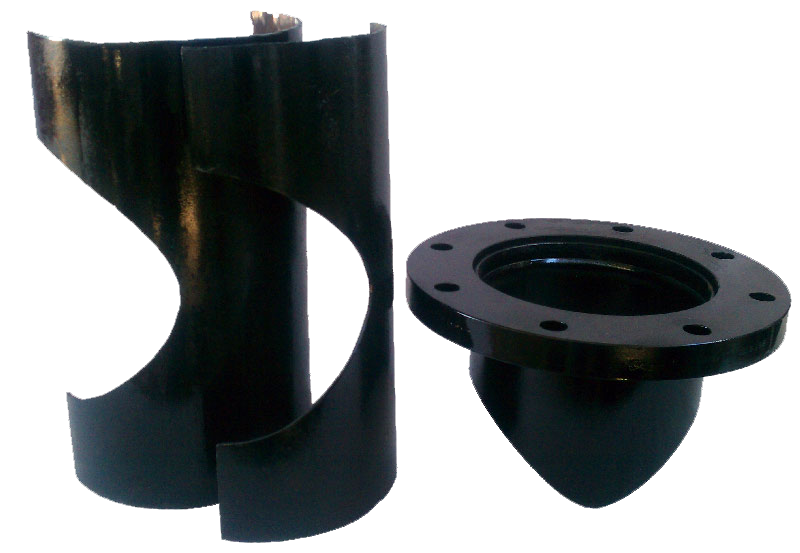

Full Wrap Fittings
Click for Larger Image
Full Wrap hot tap fittings are designed to be welded onto CMLC pipelines for structural support on the thin walled steel pipe. we start off with our standard ANSI 150 lb flanged hot tap fitting and design a wrapper to be installed and welded to give support during and after the hot tap. Many outlet and branch connection combinations available. These hot tap fittings are designed and custom made to customers specs up to 24" CMLC pipelines. Larger Full wrap fittings are availble upon request.
Please add in the cost of the contoured hot tap fitting to the full wrap fitting to find total.
| Main Size x Outlet Size | Availability | Contoured Flanged Fitting Price | Full Wrap Price |
|---|---|---|---|
| 4" x 3" | 2-3 weeks | $350.00 | $275.00 |
| 4" x 4" | 2-3 weeks | $350.00 | $275.00 |
| 6" x 4" | 2-3 weeks | $495.00 | $325.00 |
| 6" x 6" | 2-3 weeks | $495.00 | $325.00 |
| 8" x 4" | 2-3 weeks | $595.00 | $395.00 |
| 8" x 6" | 2-3 weeks | $595.00 | $395.00 |
| 8" x 8" | 2-3 weeks | $595.00 | $395.00 |
